Horizontal UF Membrane

Howie horizontal UF membrane is inside-out filtration style, membrane modules are put into pressure vessels in series and connected by adapter, the membrane pore size is less than 0.01μm. The membrane has unique water flow design and special inner structure, it has obvious advantages while applying in the power plant, steel plant, sea water desalination, etc.

Learn more about product specifications

Product description

Membrane Parameters:

Membrane material	PES
MWCO(Dalton)	50,000/100,000
Membrane inner diameter(mm)	0.9
Pure water flux(25°C)	>300LMH
Max. feed water pressure	5.0bar
Max. Temp.	50°C (150kpa)
pH	2-12
Chlorine tolerance(25°C)	200ppm

Application field

Application Field:

Surface and ground water

Power plant feed water

Pretreatment of sea water desalination

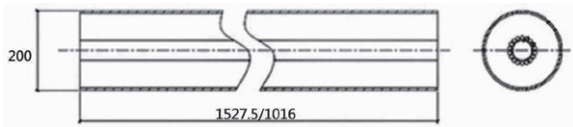

Membrane Specification:

Model

Membrane

area(m2)

Module length

(mm)

Module

diameter

(mm)

Housing

material

Filtration

method

Matched

pressure vessel

HWM-IUFH-40

1527.5

200(8inch)

UPVC

Inside-out

8inch

3/6elements

Membrane Advantage:

Standard design, similar installation to RO, easy operation

Easy to install, maintain and replace

High flux and better anti-fouling performance
